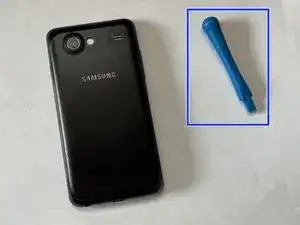

Battery

Battery

 en

Outils

Voici quelques outils couramment utilisés pour travailler sur cet appareil. Vous ne devriez pas avoir besoin de tous les outils pour chaque procédure.

Background and Identification

The Samsung Galaxy S Advance (also known by its model number, GT-I9070) is an Android smartphone released in April 2012 as an “advanced” variant to the original Galaxy S. The Galaxy S Advance is also known as the Samsung Galaxy S II Lite.

The Galaxy S Advance includes a 4-inch display with a resolution of 480 by 800 pixels for a pixel density of 233 pixels per inch. It features a dual-core processor running at 1 GHz with 768 MB of RAM and either 8 GB or 16 GB of internal storage. The phone also has a dedicated microSDHC slot that allows users to expand the phone’s internal storage. The Galaxy S Advance includes a five-megapixel main camera and a 1.3-megapixel selfie camera. It contains a 1500 mAh removable battery, meaning its battery is not attached to the inside of the phone with any kind of permanent adhesive, making repair and replacement easier than for non-removable batteries.

The Galaxy S Advance was released in black and white body colors. It includes the name “Samsung” in capital letters in the center of the phone’s top bezel and a rectangular home button in the center of the phone’s bottom bezel. It features the Android three-button navigation system, meaning it includes a back button on the right side of the home button and a ‘see-all-open-applications’ button on the left side of the home button.

Technical Specifications

Models: GT-I9070

Release date: April 2012

Body:

  • Dimensions and Weight: 123.2 x 63 x 9.7 mm (4.85 x 2.48 x 0.38 in), 120 g (4.23 oz)
  • SIM: Mini-SIM

Display:

  • Type: Super AMOLED
  • Size: 4.0 inches, 45.5 cm2 (~58.7% screen-to-body ratio)
  • Resolution: 480 x 800 pixels, 5:3 ratio (~233 ppi density)

Platform:

  • OS: Android 2.3.6 (Gingerbread), upgradable to 4.1.2 (Jelly Bean), TouchWiz UI 4
  • Chipset: NovaThor U8500
  • CPU: Dual-core 1.0 GHz Cortex-A9
  • GPU: Mali-400

Memory:

  • Card slot: microSDHC (dedicated slot)
  • Internal: 8GB 768MB RAM, 16GB 768MB RAM

Main Camera:

  • Single: 5 MP, AF
  • Features: LED flash
  • Video: 720p@30fps

Selfie Camera:

  • Single: 1.3 MP

Sound:

  • Loudspeaker: Yes
  • 3.5 mm jack: Yes

Communications:

  • WLAN: Wi-Fi 802.11 a/b/g/n, dual-band, DLNA, hotspot
  • Bluetooth: 3.0, A2DP, aptX
  • GPS: Yes, with A-GPS
  • NFC: Optional
  • Radio: Stereo FM radio, RDS
  • USB: MicroUSB 2.0

Features:

  • Sensors: Accelerometer, gyro, proximity, compass

Battery:

  • Type: Removable Li-Ion 1500 mAh battery

Miscellaneous:

  • Colors: Black, White
  • SAR: 0.37 W/kg (head)     0.98 W/kg (body)
  • SAR EU: 0.54 W/kg (head)
