Besta Super 5000 Motherboard Replacement

Rédigé par : Jessie
  • Commentaires : 0
Besta Super 5000 Motherboard Replacement

Difficulté

Moderate

Étapes

12

Temps nécessaire

10 minutes

Introduction

  1. WMPHh6Wp5BwTfknB

    • Turn the device over so that the barcode is facing upwards.

  2. oJATcCxWSi1nfCnd
    oJATcCxWSi1nfCnd
    nrimFKfHxtEpBCEI

    • Place your fingers on the battery cover arrow and pull the cover down and off the device.

  3. TIXEC3wUidOGpXZG

    • Pull upwards on the battery tab to remove the battery from the device.

  4. vqmIYnpTCXxRKkqd

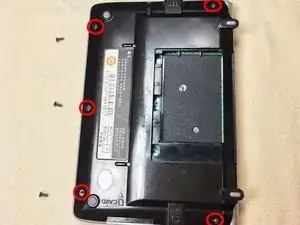

    • Remove the five screws around the edge of the device using a Phillips #0 screwdriver.

  5. kbZdXYLVDZGPvmU5

    • Remove the two screws behind the battery using a Phillips #0 screwdriver.

  6. OvRafeuu5j4SCa5T
    OvRafeuu5j4SCa5T
    4EeSPFmjjQ5VowtK

    • Potential for device damage: All screws must be removed before you begin this step. Do not forcefully pry apart the device with screws still in it because you may damage it.

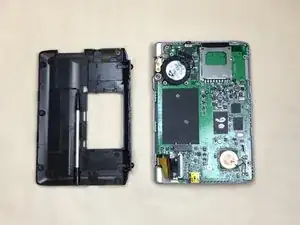

    • Gently pry off the backing using an opening tool.

  7. pxF6pVfP2CHMKGlO

    • Remove the three silver screws from the black round battery using a Phillips #0 screwdriver.

  8. gXRcSAiXUGj4GYll

    • Remove the five small screws from the motherboard using a Phillips #0 screwdriver.

  9. KP4F1NEtaV1BKQyR
    KP4F1NEtaV1BKQyR
    RgrXMWM5MSMVvAFD
    An2HFtIDsqcwSNUV

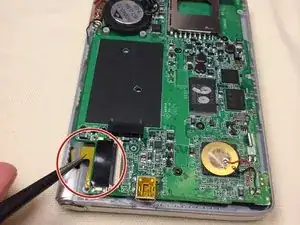

    • Using a pair of tweezers, pinch the center of the yellow ribbon located in the corner of the device.

    • Potential for device damage: Do not yank or remove the ribbon from the device.

    • Carefully pull the hidden piece of yellow ribbon out from underneath the motherboard.

  10. gDH2dKpFE1VVcQDf
    gDH2dKpFE1VVcQDf
    uFEqNBADfUi1DFWh

    • Potential for device damage: All screws must be removed before you begin this step. Do not forcefully pry apart the motherboard with screws still in it because you may damage it.

    • Carefully pry off the motherboard with an opening tool.

  11. b6gPXbCqXbEG4fB6

    • Take the motherboard out of the body frame.

  12. 1Wgm2DFTwHgyY2nu
    1Wgm2DFTwHgyY2nu
    bq3VOdhahujKXTSQ

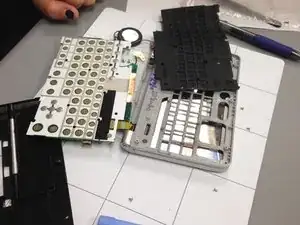

    • Lift the black keyboard mat off of the motherboard.

    • Replace the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
