Bosch IXO (2 Gen) Battery Replacement

Rédigé par : BenZ78
  • Commentaires : 2
Bosch IXO (2 Gen) Battery Replacement

Difficulté

Moderate

Étapes

6

Temps nécessaire

15 - 20 minutes

Introduction

Here we show how to replace the battery in the Bosch IXO cordless screwdriver (2nd generation) when the power or battery duration is no longer given.

  1. AmeocrJJTvbQssAX

    • Loosen 4 screws size Torx T10. The screw size is identical for all four screws.

    • All four screws are the same length.

  2. eNuoQHFHPAjFD33P
    eNuoQHFHPAjFD33P
    WFn6jJap1UVpLNps
    nlFA11VKYSftvQmS

    • Loosen the nameplate on the bottom of the screwdriver and set it aside so that the right housing part can be removed in the next step.

  3. Opn2a43ba4sJ5QsG
    Opn2a43ba4sJ5QsG
    wLhswAMXtqJnVdll

    • The housing halves now lie loosely on top of each other. Lift the right housing half upwards and set it aside.

    • It may be that the two halves of the case stick together quite strongly due to the gasket in between. Then shake it delicately and pull vigorously. :)

  4. fflgPlgkeKwiDEdh
    fflgPlgkeKwiDEdh
    g5YQBDKTDCtHE4F6

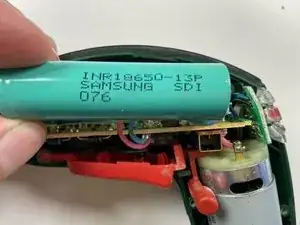

    • The green battery can be found in the red border.

    • The battery is labeled with: INR18650-13P SAMSUNG SDI 076

    • You can find it for example at Amazon or eBay, if you search for "Samsung 18650 13P solder tag

  5. WGaTkIwTPrRZTgUB
    WGaTkIwTPrRZTgUB
    QQCTWYIsiyQLI1Bj

    • Heat the cables at both pole ends with a soldering iron and detach them.

    • In this tutorial, you will learn how to solder and desolder.

    • Please dispose of the battery properly at local disposal points.

  6. VAv1MXhRHgoWRkls

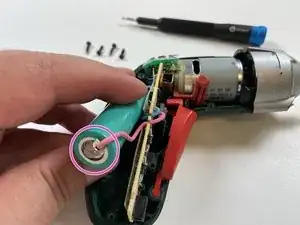

    • Connect the side of the new battery with the white ring (positive pole +) to the red cable. Solder the blue cable to the other side (without the white ring).

Conclusion

To reassemble the device, follow the steps in reverse order
