Dell Inspiron 15 5577 Gaming Battery Replacement

Rédigé par : Terrence15
  • Commentaires : 1
Dell Inspiron 15 5577 Gaming Battery Replacement

Difficulté

Easy

Étapes

8

Temps nécessaire

2 - 9 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Battery.

  1. 3nUs1DAhMerB4ujH

  2. SjfWlIux1vnIfqGU

    • Remove the five screws (M2x5 T8) that secure the battery to the computer base.

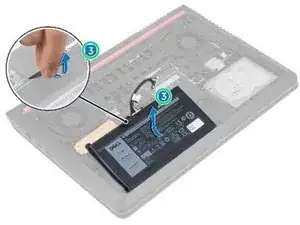

  3. K4aTYopYfxANSlHR

    • Using the pull tab, lift the battery, along with its cable, off the computer base.

    • Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

  5. bpEZTugN2aikAtKw

    • Slide the NEW battery in the slot on the computer base.

  6. krnl14f1KqwWWyvv

    • Align the screw holes on the battery with the screw holes on the computer base.

  7. 556xYRDV5jG5XFEl

    • Replace the five screws (M2x5 T8) that secure the battery to the computer base.

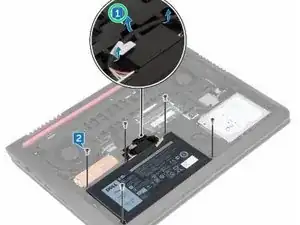

  8. H4ivHpvrSWa5NSmW

    • Route the battery cable through the routing guides on the computer base.
