Introduction

Use this guide to replace a broken lever in your T-fal Avante T24-B toaster.

Toasters are a staple in many households, providing a quick and easy way to make toast for breakfast, a sandwich for lunch, or a snack any time of the day. However, like any other appliance, toasters can break down over time and one of the most common problems is a broken toaster lever. A broken lever can make operating the toaster difficult and even be a safety hazard. Fortunately, replacing a broken toaster lever is a relatively simple process that can be done with just a few basic tools and some guidance. In this guide, we will walk you through the steps to replace a broken toaster lever.

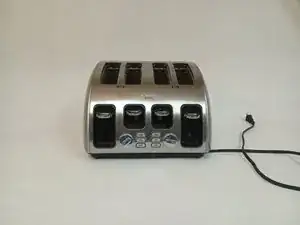

  1. O5Fiu5YFQM2UR6vq
    • Make sure the toaster is unplugged before beginning.

  2. NYcaXvDCm4jivRp6
    NYcaXvDCm4jivRp6
    hmUxpBeKDhq4tRUw
    MIR1hvipBA3WfRQm
    • Remove the snap-on buttons from the front of the toaster.

    • They can be removed by pulling with your hands or gently prying with a flat tool.

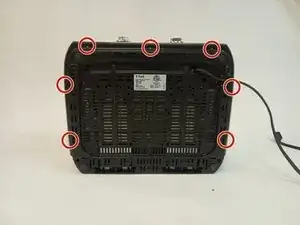

  3. NYcaxuJTEUDPByAt
    NYcaxuJTEUDPByAt
    iryZ6SShJSI55OFV
    WKOrpBZRHAyAtDMF

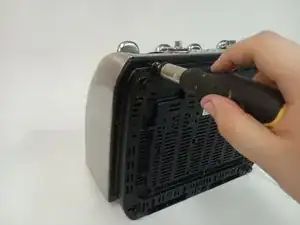

    • Flip the toaster so that you can see its underside.

    • Remove the seven 20 mm Torx T3 screws from the bottom of the toaster.

  4. ELhVN6iDMFkhDkRQ
    ELhVN6iDMFkhDkRQ
    ZDaVTIQv1I6kAB2S

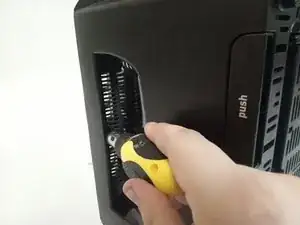

    • Turn the toaster so that you can access the back of the toaster

    • Remove the 3 15 mm Torx T3 screws from the back of the toaster.

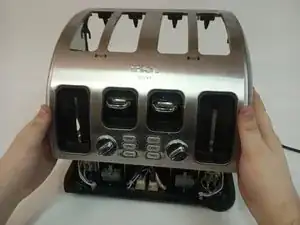

  5. KvEq5WIiGe6bOEaA
    KvEq5WIiGe6bOEaA
    nplFoaZfQHENZRC6
    • Pull off the toaster casing.

  6. OSXGxb3owRqMwh2L
    OSXGxb3owRqMwh2L
    EqrCVCGL42iLsoF2
    • Unplug the casing so that it does not get in your way.

    • Unplug both wires connecting the casing to the internals of the toaster.

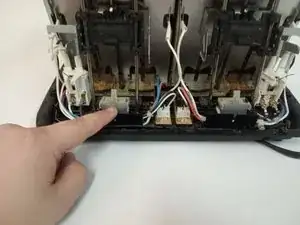

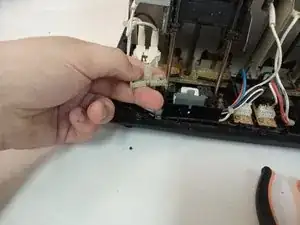

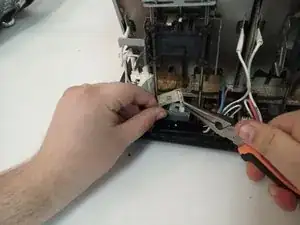

  7. Zn1LJ5HpqrMgi2n4
    Zn1LJ5HpqrMgi2n4
    pPT5JX2S1YjaHELU
    YueCK4cHkbEkoXwJ
    • Pry both sides of the broken lever at the front of the toaster away and remove it.

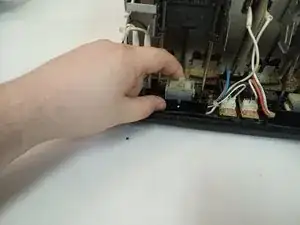

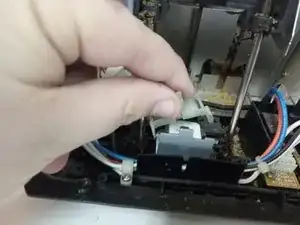

  8. tNhStg5QXCbWEU4M
    tNhStg5QXCbWEU4M
    fOAeqPZPUuaTGfVx
    fBDHyyyATnLwD2Y5
    • Snap the replacement lever into place.

    • Attach one side first, then snap the other side on to fully attach the lever.

Conclusion

To reassemble your device, follow these instructions in reverse order.
