Lenovo ThinkPad X280 Display Assembly

Rédigé par : Hannah Bryn Cullen
  • Commentaires : 1
Lenovo ThinkPad X280 Display Assembly

Difficulté

Moderate

Étapes

5

Temps nécessaire

30 - 50 minutes

Introduction

This replacement will take approximately 20 minutes to take out the screen and put the other screen in.

  1. 3UPYbIucYqvFfhc4

    • Lay the computer flat on the back of the screen.

  2. xJrKiJkBlIWuKqID

    • Use the metal spudger to pry the screen away from the assembly.

  3. hdHsIwE25AJBmjEq

    • The screen will fold down over the keyboard, exposing the connections.

  4. vYE2GlXDl4tfTTlh
    vYE2GlXDl4tfTTlh
    DyZNIDYBsOZGX6Sh

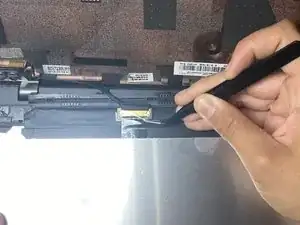

    • Use tweezers to gently remove the tape that secures the connector.

    • Lift the bracket on the bottom of the connector, and gently remove the bundled cable.

  5. RwnaJgT2fQDyxnyf

    • Remove the screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Auteur

Hannah Bryn Cullen

Membre depuis le 03/10/22

436 Réputation

Un commentaire

Anyone tried modding the screen with a 13.3" screen? I heard the screen part number is N133HCE-GP1, but you need to cut the bezels, and rewire the camera module and stuff.
