Réparation de l'erreur EPSON B-510DN 0xF2 ou 0xF3

Rédigé par : delete
  • Commentaires : 14
Réparation de l'erreur EPSON B-510DN 0xF2 ou 0xF3

Difficulté

Modérée

Étapes

15

Temps nécessaire

20 minutes

Introduction

Imprimante bloquée pour l'erreur 0xF2 ou 0xF3

Cette erreur se produit lorsqu'il y a des problèmes avec l'encodeur lorsque le rouleau essaie de déplacer le papier.

  1. Awg1jadfrnZJfDPc
    Awg1jadfrnZJfDPc
    hAiMOYFCZDHIfMTT
    VLVSfx3HfUTK4WHy

    • Retirer le bac à papier

    • Retirez la cassette de papier

    • Retirez les réservoirs d'encre.

  2. GkM62qabpXsi2Ms1
    GkM62qabpXsi2Ms1
    3fZZ5yIHBVfNyuIn

    • Retirez les couvercles d'ouverture.

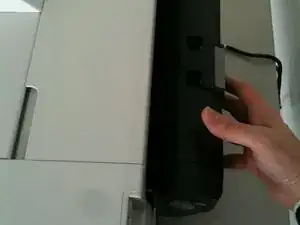

  3. QmuPOyMDsjrboxnl

    • Retirer le composant arrière

  4. PUCkFSC5EcXhilVM

    • Démonter le levier d'encre

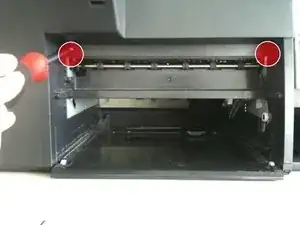

  5. poPSqjBhJUAJaHKh
    poPSqjBhJUAJaHKh
    TkyNSyAahZZFrjwV

    • Retirez les vis du panneau avant

  6. mav3LEYprJoXmAS5
    mav3LEYprJoXmAS5
    KqCBAPVZ1RYkapT2

    • Démonter le panneau LCD

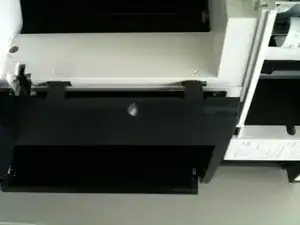

  7. xrTe6ivOkQ4DJWSh
    xrTe6ivOkQ4DJWSh
    DVkapJM4eBQYbkp3
    I4sPTyKVZtseIjuN

    • Retirer le panneau avant

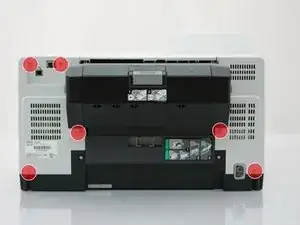

  8. MHnjkvCFfwYZQtlP
    MHnjkvCFfwYZQtlP
    fIFBbLLxfYDKlk6P
    khWAmSlPYCwPuPoD

    • Retirez les vis du panneau arrière

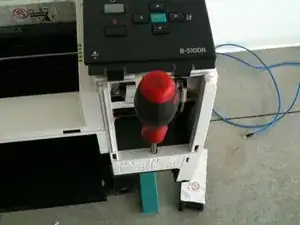

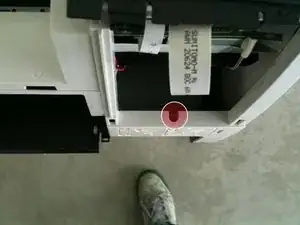

  9. F1Gb2C2Cbcv5BqQZ
    F1Gb2C2Cbcv5BqQZ
    t1sURZFKXGSVxKR5

    • Retirez la dernière vis du panneau arrière (cachée derrière l'écran LCD)

  10. euS2j6AXoqD3WGkh

    • Retirez le panneau arrière Ethernet

  11. Iqfw16WHRDLwurlR
    Iqfw16WHRDLwurlR
    3OeDeMjfHVZVAOAN
    tdNtTvBZWRYJxWH4

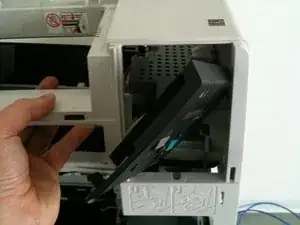

    • Retirez le panneau arrière principal en faisant attention de ne pas endommager l'écran LCD

  12. JGYDD2MwJQlW5gOI
    JGYDD2MwJQlW5gOI
    cBEwGUdfnXxiLrVf

    • Nettoyez le rouleau gauche très délicatement avec un chiffon sec ou une brosse douce

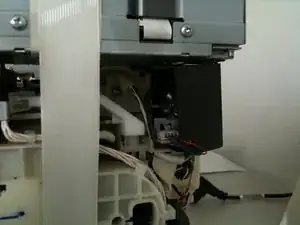

  13. wvgNWlVnmVGTQIDE
    wvgNWlVnmVGTQIDE
    ggH53x5iHtJMyTK4
    OrNpEIMFX2FR3fxU

    • Nettoyez très délicatement l'encodeur droit avec un chiffon sec ou une brosse douce.

  14. D5Vo2FcMF3o1ND6K
    D5Vo2FcMF3o1ND6K
    HxRDNj2VMewmMPV2

    • Si vous voulez tester l'imprimante, vous devez insérer du papier et couvrir 2 interrupteurs avec du ruban adhésif.

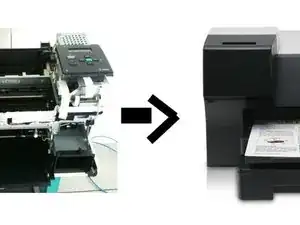

  15. 5eMlOYn6CkNhJHMN

    • Remontez l'imprimante (enlevez d'abord la bande si vous l'avez utilisée) en suivant ces instructions à l'envers.

Conclusion

Pour remonter votre appareil, suivez ces instructions dans l'ordre inverse.

Auteur

delete

Membre depuis le 15/11/12

547 Réputation

14 commentaires

It's works, thanks

Thom -

Perfect. I used this guide to disassemble my printer.

I had 0xF1 and/or 0xF4. The reason was some paper stuck between the gears of the paper feed (in this guide step 12).

I hope this hint will help others. I didn't find any info about these error code online.

DumahBrazorf -

Error descriptions I found here - http://www.fatalerrors.info/

John Smith -

Thank you very much ! This is a very useful and beautifully documented guide. Best wishes and greetings to the kind author of this guide from Bratislava, Slovakia.

George Pekarovic

George -

muito obrigado pela ajuda

Filipe Rocha -

You are awesome! It helped me! Thanks very much!

martinjurtik -

Hi

I keep getting on an Epson B-500DN printer error restart printer with the paper and ink led blinking orange.

Disassemble the printer made a full cleaning (all encoding wheels too) and keep getting this error, the printer goes until ready, then as soon as it says printing it shows the error.

anyone ???

invitro59 -

OMG.

I had error oxF3.

I was set to bin this ace printer, I just googled the error code and bam this guide came up. This was awesome, I only found a little dirt on the step 12 clear plastic disc, nothing visible on step 13. Put the cartridges back in, maintenance tank paper tray and hooked up the power and network cable, and covered the 2 switches with tape. then OMG it worked. Now need to work out which screw goes where and reassemble.

Malcolm Taylor -

OK. Seguito con semplicità e Risolto il Problema. Adesso funziona. OK Thank you

Foto Diego -

What about Erro code 0xF3 in Epson WF7610

ABEL MLIGA -

Yes what about the WF7610 error code 0xF3?!

David Imondi -

I have Epson XP 710 which shows an error code 0×4f what can i do for it. When i turned it on it's starts well with Epson logo but there's a sound of running the gears in fast speed for a few seconds after this it's showing the error just after pooping up the menu screen no head movement. Kindly forward me with possible assistance

abab6330 -

Constantly gives 0xF4. If you move the head to the center, when it is turned on, it goes to the left, then goes to its place and when Parking the engine PF PID (left) twitches a little, and the scoreboard error 0xF4. In printer all cleaned up, blew. Cartridges took out, got a diaper. Before that, it was so that it prints, then outputs 0xF4 and sometimes 0xF1. What to do?

561054 -

Works very good. The photos for the right sight could be better, but when you know how it looks on the left its possible to find.

Ralf Sagorny

Ralf Sagorny -
