Réparation du vérrouillage de porte Metalflex ZV-446

Rédigé par : Ludwig
  • Commentaires : 41
Réparation du vérrouillage de porte Metalflex ZV-446

Difficulté

Facile

Étapes

4

Temps nécessaire

15 - 20 minutes

Introduction

Ma machine à laver m'a donné du fil à retordre, ne démarrant qu'après quelques ouvertures et fermetures de porte. Parfois, elle démarrait immédiatement, parfois, je devais essayer 8 à 10 fois avant de commencer le lavage. J'ai pensé qu'il y avait un problème avec l'interrupteur de porte, qui détermine si la porte est correctement fermée. J'ai supposé un problème de contact, donc la machine pensait que la porte était toujours ouverte et n'a donc pas commencé à laver. Je n'ai trouvé aucun tutoriel de réparation sur Internet, mais certaines personnes se demandaient quel contact faisait quoi. J'ai donc pris une photo pendant la réparation et j'ai essayé de comprendre à quoi servaient les contacts.

Remarque : un autre problème avec le verrouillage (constaté sur un autre appareil, mais symptômes similaires) était causé par le déplacement de l'axe sur lequel pivote le loquet de verrouillage. La porte avant ronde a été démontée (vis et loquets en plastique), l'axe a été remis à sa place et fixé avec de la colle.

  1. BICwIHSBCE5dWJMl

    • Retirez le dispositif de verrouillage de la porte de votre appareil. Sur ma machine à laver, j'ai dû retirer le couvercle en caoutchouc et retirer deux vis. Ensuite, le dispositif de verrouillage est sorti avec un câble à 3 pôles attaché. À l'arrière se trouvait une plaque en plastique qui devait également être dévissée.

  2. QLPfEAhb1UMn5yMZ

    • Retirez la prise et retirez le couvercle rouge entourant les contacts. Il est maintenu par deux connecteurs à encliquetage et il est assez serré (ne détruisez pas le couvercle des contacts). Utilisez un petit tournevis à tête plate pour repousser les crochets.

    • Retirez le haut du boîtier rouge. Il y a six boutons-pression pour l'ouvrir. Assurez-vous d'avoir d'abord retiré le couvercle des contacts ! Encore une fois, il est préférable d'utiliser un petit tournevis à tête plate ou une lame.

  3. BJaoNeNde3HnZ6Di

    • Le contact central est commun à l'interrupteur et au relais. Celui de droite va à la bobine et sert à la fonction relais du verrouillage.

    • Celui de gauche sert à l'interrupteur de porte. C'est celui qui dysfonctionne sur ma machine à laver.

    wie kann man überbrücken?

    Gerhard Grassegger -

    Was genau möchtest du überbrücken?

    Fabian Neidhardt -

  4. RCEsrfGuIcBOIVd5

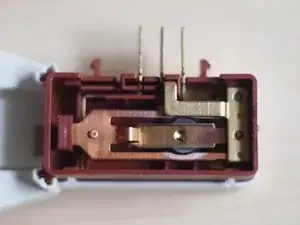

    • La flèche pointe vers le contact de l'interrupteur. Ma machine a cessé de fonctionner car l'interrupteur de porte ne fonctionnait pas correctement. La machine n'a jamais détecté de porte fermée et n'a donc jamais commencé à laver.

    • Lorsque l'interrupteur se ferme, la plaque de cuivre avec la flèche sur l'image descend. En dessous se trouve le contact de l'interrupteur extérieur. Il peut être retiré du boîtier en plastique. Vous devez plier doucement la plaque de cuivre avec la flèche vers le haut. Une fois retirée, vous pouvez nettoyer la zone de contact du dessous.

    • Dans mon cas, le dissolvant pour vernis à ongles n'a pas fonctionné, j'ai donc gratté la saleté avec une lame. Je ne vois pas comment nettoyer le contact supérieur de l'interrupteur, car la plaque de cuivre n'est pas amovible. Pour mon interrupteur, nettoyer le contact inférieur a suffi à faire fonctionner la machine à laver !

    thank you very much! it avoids me to buy a new one; mine was 10 years old month to month, as it was cheap 200€ i did not want to spend too much time or buy parts. as i have no more young child, i will short the switch to common...

    elo.bonjean -

    Sorry,

    This is a very weak post….anyone could describe what you described….no pictures to show how to dis-assemble the internal parts?..

    juriemagic -

    Thank you so much!! My washing machine did like yours, my husband opened it up. Thought it was that little piece causing the trouble. I googgled the name of the piece and your awesome, helpful post appeared! You saved us the price of a new washing machine. Thank you for taking the time to write up those instructions!

    Amelie Llorca -

    Не разбирайте этот Device! Снимете его. Питание стиральной машины должно быть отключено! Замерьте сопротивление между N (средний контакт) и L (управление, более тонкий и возможно красный провод). Оно должно выражаться 3-х значной цифрой. Если на тестере отображается 1 то Device не исправен. Просто закажите новый. Если хотите экспериментировать дальше) не разбирайте Device. Если у Вас отсутствует характерный щелчок перед выполнением программы есть шанс исправить положения при помощи винта на обратной стороне (на фото автора его нет, он с обратной стороны) Доверните винт на не большой угол по часовой стрелке. Тем самым Вы выберете зазор и заставите “реле “ (это тепловое реле) срабатывать снова. Не выкручивайте винт до конца, не крутит в разные стороны))) Я просто заменил этот Device (Реле) в сборе. Но из любопытства открыл старый Device и изучил его конструкцию)))

    PS Используйте силиконовый герметик для фиксации винта после регулировки. Спасибо)

    Marathon B. -

    If you take the parts out from below the switch, make sure they go back in correctly. Best to take a photo. At the bottom is usually an adjustment screw. Next goes the saddle which has a hole in the middle and two bent lugs that should be bent up towards you when the saddle is in position. There are four pegs the saddle sits between, it has notches in the edges. Then the bimetal strip, on mine the writing was towards me and the small notch at one end should face the terminal lugs. Then the pellet which heats up (this can go either way up). Finally the switch mechanism can be inserted and carefully screwed in until the screw bottoms out (don’t over torque or you will strip it)

    If the bimetal strip is upside down (as in my first attempt) then it will bend the wrong way and the interlock won’t work.

    Tim -

    Besten Dank erstmal, genau das war das Problem. Ich mußte immer mehrere Male mit dem Knie gegen die Türverriegelung stoßen daß die Maschine endlich startete, und das schon seit einigen Jahren. Oxidierte Kontakte reinige ich immer mit einem Radiergummi. Der untere Kontakt ist ja herausnehmbar, also kein Problem. Ich habe von einem Radiergummi eine 1mm dicke Scheibe abgeschnitten und diese Scheibe mit Hilfe einer Pinzette nach vorsichtigem Hochbiegen der Kupferplatte einige Male über den Kontakt gezogen, spiegelglatter gehts nicht. So habe ich beide Kontakflächen wieder wie neu. Ich denke das Problem ist das Feuchtklima in der Maschine die die Kontakte oxidieren läßt. Das nervigste an dieser Reparatur war für mich das Entfernen dieser Kontaktabdeckung mit den 2 Widerhaken die sich ja kaum reindrücken lassen. Dann ist mir auch noch die kleine U-förmige Bügelfeder zwischen Bimetalstreifen und Kontaktträger herausgesprungen. Eine sehr gute Anleitung mit guten Bildern, besten Dank nochmal.

    Hannes Baum -

    Huhu,

    coole Anleitung Danke !

    Hinzufügen kann ich auch etwas: Wenn das gehäuse offen ist,kann der mittlere Steckanschluß (Common) vorsichtig nach ober heraus gezogen werden. Vorsicht! Die Federspange fliegt sehr weit ;-). Dann können die Kontakte Prima gereinigt werden und verbiegen nicht.

    Primate -

    I tried to fix mine as per the method to no avail.

    I’ve ordered a new one and bypassed the lock in the meantime so we can still use it (bridged switch and common inside the mechanism with a wire).

    Andrew S -

    Hi there, any chance you could explain which colour cable goes into which pin please? I stupidly pulled and messed the connector, and forgot to take photo of it so now I have no idea which cable should connect back to which one!

    Roy Luo -

    Helpful post. My twitch contact was good, it was the relay not pulling the switch to make contact. Adjusted the sensitivity screw under the rubber sealant and sorted it out. I accept that it may fail in the future as further aging occurs but it’s 1) proven the fault location and 2)bought me time to source a replacement part. These switches are commonly used in many of the brands.

    Marco S -

Conclusion

Pour remonter votre appareil, suivez ces instructions dans l'ordre inverse.
