Réparer la surchauffe du NUC8i7BEH

Rédigé par : Vladimir Knobel
  • Commentaires : 40
Réparer la surchauffe du NUC8i7BEH

Difficulté

Modérée

Étapes

20

Temps nécessaire

30 minutes

Introduction

Le faible facteur de forme rend le NUC trop enclin à la surchauffe en raison de l'accumulation de poussière dans les ailettes de sortie d'air du refroidisseur du CPU.

  1. iLv2KjMvmsEfKi3Y
    iLv2KjMvmsEfKi3Y
    cWkGXg56xnc1GGM2
    ElVf2YnFFoXJ3ODF

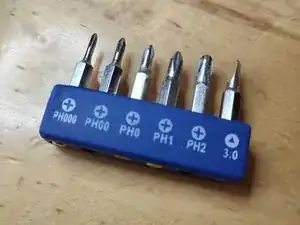

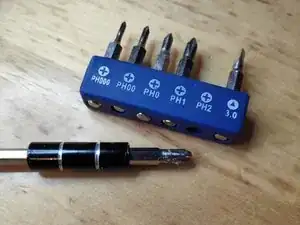

    • Placez le NUC à l'envers et sélectionnez un embout de tournevis Phillips PH2.

  2. 5LXcETZhgCEBFtFI
    5LXcETZhgCEBFtFI
    yhK2wBwtjDRRugrU

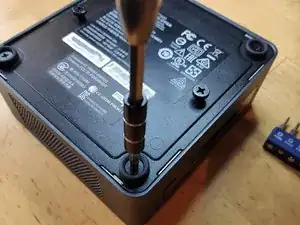

    • Commencez par utiliser un tournevis cruciforme n° 2 pour retirer les vis inférieures de la trappe inférieure du boîtier.

    • Ce vis restent captives, elles ne tomberont donc pas quand vous ouvrirez la trappe.

    What are the size of these case screws?

    Michael Lepore -

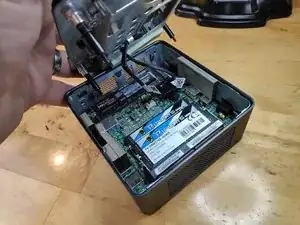

  3. bhndLRHUWyFtdiAA
    bhndLRHUWyFtdiAA
    QCAYcvFb6ruhUtpT
    Js5rdDRXVIdhWCDH

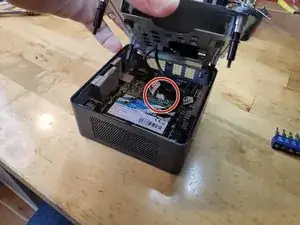

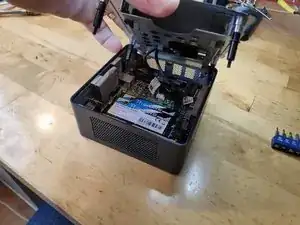

    • Soulevez la trappe et surveillez les câbles qui se connectent à la carte mère du NUC. Ces câbles sont les câbles d'alimentation et de données pour la baie de disque dur 2,5".

    • Débranchez soigneusement les câbles de la carte mère et mettez le support de côté.

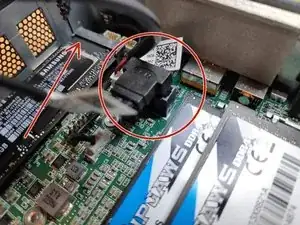

    • Sur la dernière photo, l'emplacement pour un SSD lame est marqué d'une flèche rouge. C'est là que vous installerez le SSD lame et utiliserez une vis pour le maintenir en place.

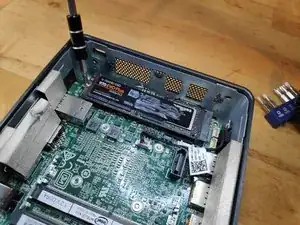

  4. YGPRvVCtYEhLU3Lt
    YGPRvVCtYEhLU3Lt
    asuqDIHLiiFmxoMX

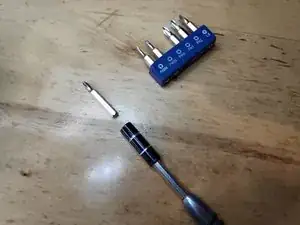

    • Remplacez l'embout de tournevis par un PH1.

    • Dévissez le SSD V-NAND et faites-le glisser avec précaution hors de son connecteur.

  5. Étape précédente en vidéo.

    • Étape précédente en vidéo.

  6. MIpgTEX1mQENjsuu

    • Changez l'embout du tournevis en PH1.

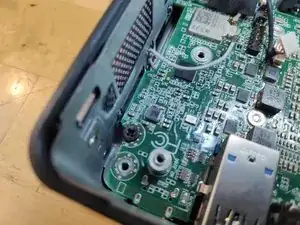

  7. frD4VaxFk5pt4o16
    frD4VaxFk5pt4o16
    4EXFJdxOJKpMDNDC
    IwkjojFXbgxpK2GU

    • Dévissez les vis entourées en rouge.

    Hello, may I know what is the screw size? I already stripped mine so I'm trying to get a replacement screw when I have the stripped out. Mine was stripped and cannot get it out. Can you please help me? I've already used the rubber and glue method but no luck.

    Fitri Suhaimi -

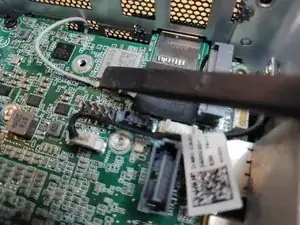

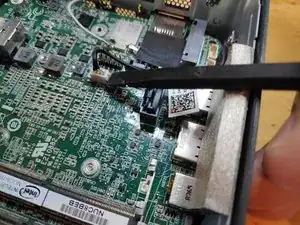

  8. bXN2KelA6UENepsV
    bXN2KelA6UENepsV
    dJAAGRBCACvZLIsX
    ejDFmgh1Q1KhFLJI

    • Retirez les câbles d'antenne WiFi et Bluetooth (soyez extrêmement prudent lorsque vous faites cela, sinon vous risquez d'arracher la borne de contact de la base du PCB).

    • Retirez le câble du micro stéréo du connecteur de la carte mère.

    • Faites attention au câble Wi-Fi caché sous un morceau de ruban adhésif noir.

    Remove WiFi an Bluetooth antenna Cable very carefully. Terminals can be ripped of easily.

    Christian Reinhold -

    very true, I’ll add it to the guide

    Vladimir Knobel -

    Added to the step in the guide, thanks for pointing that out!

    Vladimir Knobel -

    Note that the WiFi and Bluetooth antenna cables lift/pull off vertically (not slide off horizontally, as I presumed from the photo). They are circular connectors with a pin in the middle. Getting them off was okay (I actually used tweezers), but it was fiddly work trying to push them back on.

    Carl -

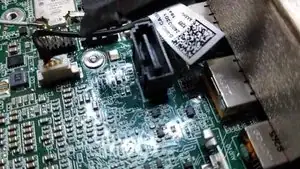

  9. Débrancher le câble du micro.

    • Débrancher le câble du micro.

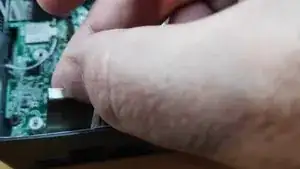

  10. Retirer les rembourrages des côtés.

    • Retirer les rembourrages des côtés.

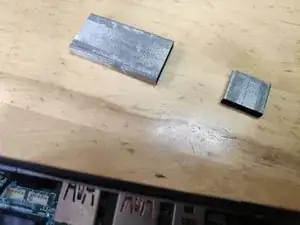

  11. iieAfEfVcF1664xQ
    iieAfEfVcF1664xQ
    canT2xLG6FaTCVcD

    • Tous ne sont pas nécessaires, seuls les deux représentés.

    Hallo, kann man den Lüfter auswechsel. Bei mir ist er nach ca. 15-20 min sehr laut.Ich glaube das das Lager defekt ist . Wenn ja, wo bekomme ich einen neuen her?.Für eine ausführliche Nachricht wäre ich sehr Dankbar.

    Mit freundlichen Grüßen

    Joachim Arndt, j.a.50@web.de

    joachim arndt -

  12. tOgKIPOLBLUM3Q23
    tOgKIPOLBLUM3Q23
    J6onfbukKHgZMbNn
    pHZ6AT6LBiErPDil

    • Utilisez un outil de levier pour soulever la carte mère hors du boîtier.

    • Entourée en rouge, la poussière évidente à première vue.

    Amazing! Could replace the fan. Have also removed the 4 screws of the heatsink , and renewed the thermal paste underneath it. That was necessary. It was dried out. THANKS!! It works like new: no overheating anymore. A lot faster.

    lutgart.schreyen -

    The key for getting the motherboard is to move apart very firmly the two opposite sides of the metal casing, so as to let the connectors move down.

    Jan Drouaud -

    Thank you Jan for that tip!

    I spent 20 minutes trying to jiggle it out before I read that!

    Yes, pull it apart somewhat and it comes out (relatively) easily.

    Bob Mudford -

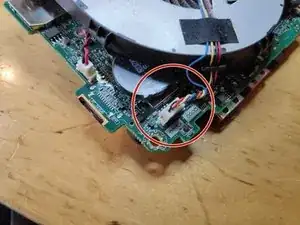

  13. b2loOl4pHWk2AWEI
    b2loOl4pHWk2AWEI
    lSEN6rDxlTGZTArG
    gIus2WZ1LXyrfyvF

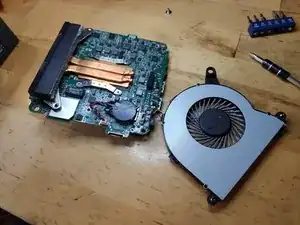

    • Retirez les 3 vis qui fixent le ventilateur du processeur.

    • Retirez le connecteur d'alimentation du ventilateur de la carte mère.

  14. XX4cfJEPUri4g1Nu
    XX4cfJEPUri4g1Nu
    jbQCYWbHtPxfZbGd
    TwgYhyw4wmajCiEU

    • Il faudra utiliser de l'air comprimé, un petit aspirateur ou équivalent pour souffler toute la poussière coincée.

  15. yZHBjqwRcOdprTGR

    • J'utilise une bouteille d'air comprimé (optionnel).

  16. Vidéo de la procédure.

    • Vidéo de la procédure.

  17. Vidéo de la procédure.

    • Vidéo de la procédure.

  18. 2GVOetl3MgYykCBb
    2GVOetl3MgYykCBb
    mQ3lCLr1ICfsKHOx

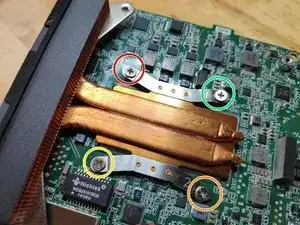

    • Cette étape n'est probablement pas nécessaire, mais la voilà par souci de complétude.

    • Retirez les vis qui maintiennent le dissipateur thermique du processeur en suivant les numéros écrits dessus.

  19. Z4oypypSsIKp6exn
    Z4oypypSsIKp6exn
    4T1XAY1UhB4tZpGu
    AHniYsTgCGKTJSpM

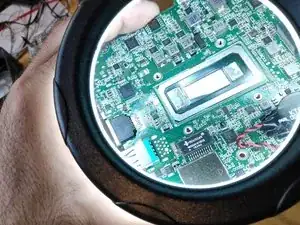

    • Pour cela, utilisez de l'alcool isopropylique, faites attention à ne pas toucher les patins thermiques sur les puces autour du processeur.

  20. LXvg5FSF56PwaKRj

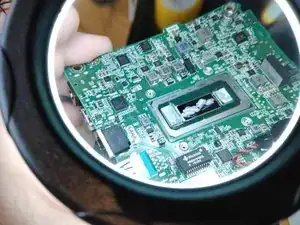

    • Attention à ne pas trop en mettre.

    Good morning, i'm tryinf to fix my nuc 8i5beb, I've found a burned component on the motherboard and I can't read the referance name. it's nead the connector right down the dissipator. can anyone help me? Thanks

    Roberto -

Conclusion

Pour réassembler votre appareil, suivez ces instructions dans l'ordre inverse.
