Introduction

Après avoir suivi les procédures de dépannage et que l'appareil ne s'allume toujours pas, il est peut-être temps de remplacer la batterie.

  1. jDxFZBD5wVOsGqUT
    jDxFZBD5wVOsGqUT
    kSGDtT5Sqvbqe2Cp
    YLUBB4gUifKsJvF2

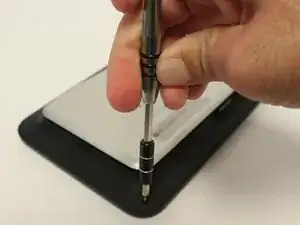

    • Retirez les bouchons à vis à l'aide d'une spatule en métal.

    • Retirez les quatre vis de 6 mm à l'aide d'un tournevis cruciforme n ° 0.

  2. fAvNVNhLFIGTsqVN
    fAvNVNhLFIGTsqVN
    wrmNndDYmTTDRpx6
    C1hnLPGmXZFXZ5Jx

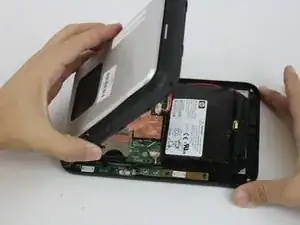

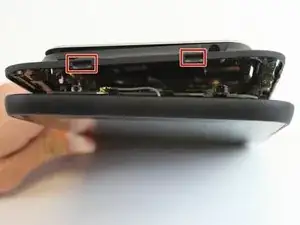

    • Déclipper chaque côté en insérant un outil d'ouverture en plastique et faites-le glisser le long des bords.

    • Retirez le panneau arrière en le soulevant pour le dégager de l'appareil.

  3. VbWxKvgHPfAkWnOA
    • Déconnectez le clip de la batterie avec un outil d’ouverture en plastique.

    • Le clip est très fragile.

  4. B6OI6BfBNiupnSpc
    B6OI6BfBNiupnSpc
    WZ1EpmKbvl6VIYov
    • Retirez la batterie à l'aide de l'outil d'ouverture en plastique.

    • Il y a de la colle qui maintient la batterie, ce qui demandera un effort.

Conclusion

Pour remonter votre appareil, suivez ces instructions dans l’ordre inverse.
