Remplacement de la batterie du Sony Xperia Z5

Rédigé par : Lenka
  • Commentaires : 11
Remplacement de la batterie du Sony Xperia Z5

Difficulté

Facile

Étapes

4

Temps nécessaire

5 - 15 minutes

Introduction

Ce guide va vous montrer comment remplacer la batterie de votre Sony Xperia Z5.

  1. WiWxfoKEVkLx2wQt
    WiWxfoKEVkLx2wQt
    BqB4B4MkWFqcNgrX

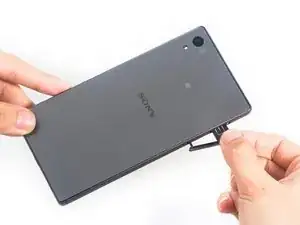

    • Retirez le support de carte SIM

  2. ussACdQWFBShhFIF
    ussACdQWFBShhFIF
    kHBJZfeo2HQDKRZ5

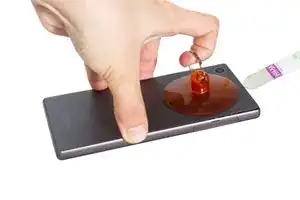

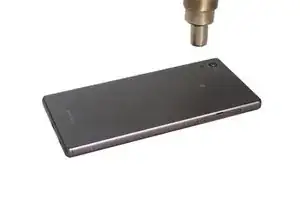

    • Chauffer le dos de la coque pour ramollir la colle

    • Placer la ventouse et insérer l'outil d'ouverture en métal pour créer un écart en haut de l'appareil

    Any recommendation on how hot and how long to heat it up?

    Benedikt M. -

  3. VlALyqFVLjXIF4pK
    VlALyqFVLjXIF4pK
    dVNXMomlJmGAPsNW
    QsL31Pnyg5RsW4nc

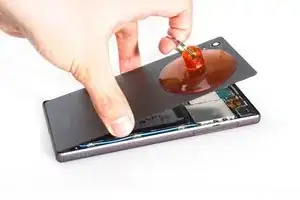

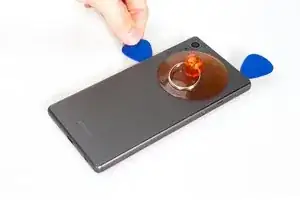

    • Inserez les médiator et faites les glisser pour couper la colle sous la coque

    • Retirer le dos de la coque

    Does the adhesive in this step need to be replaced? Don't really want to lose the water proofing…

    Harald McArthur -

    Usually the adhesive is slightly damaged during the opening procedure which might void the water resistance of the phone. So to re-seal the back cover it’s best to use fresh adhesive. If you don’t find a pre-cut adhesive tailored to the Z5 you can go with double-sided adhesive tape or an adhesive glue. If you find the remaining adhesive in good condition and trust it to do its job, the re-use it by heating it up a little bit and applying pressure to the re-attached back cover for a few hours.

    Tobias Isakeit -

  4. ECkFXYg1tnDu5LZn
    ECkFXYg1tnDu5LZn
    kGkHfHnIjjXaUCap
    L6dI4grHjyNRXvMG

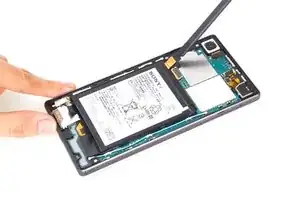

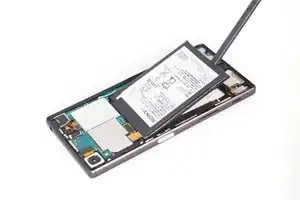

    • Debrancher le connecteur de la batterie et tirer sur la languette en-dessous de celle-ci.

    • Soulevez la batterie

    Can you tell me the wire connection colour code of battery? because i brought the ones but its not working.

    denkim2701 -

Auteur

Lenka

Membre depuis le 06/11/15

2408 Réputation

7 commentaires

I missed the part about the adhesive for the battery and broke the tabs off. Made it slightly harder but I got it. Thanks for the instructions. Now I can get all my things off of it

Braydon -

can you put a link to where i could buy the battery from? it would be helpful, thank you

ido r -

worked a treat - simple straightforward - thanks!!

John Turnbull -

umm how do you put the cover back on?

Dulantha Fernando -

Just push and then consolidate with heat, I used hair dryer.

Jorge García Laosa -

can reuse the same cover, or need a new unit ?

Chu Tat Liang -

Will this work for z5 premium ???

Q8Lucifer -
