Remplacement des manettes L et R du Enhanced Wireless Controller

Rédigé par : Ayjah Montgomery
  • Commentaires : 24
Remplacement des manettes L et R du Enhanced Wireless Controller

Difficulté

Modérée

Étapes

5

Temps nécessaire

5 - 10 minutes

Introduction

Ce guide vous montrera comment accéder et remplacer les sticks L et R de votre manette sans fil améliorée PowerA. Si vous devez nettoyer les résidus autour des bâtons, les retirer vous aidera à le faire.

  1. 1D1TIShfjTbDYKWl
    1D1TIShfjTbDYKWl
    vSbNxm4txNUOJW2G
    1GuRcPtBLLwIeb1M

    • Retirez le couvercle de la batterie en appuyant sur le levier situé sur le dessus du couvercle.

    • Appliquez une pression jusqu'à ce qu'il s'encliquette et retirez-le.

  2. wUMMQTYEsoRhTS2j

    • Retirez les huit vis à l'aide du tournevis J0.

  3. NwcZTVUPBiBDxOeE
    NwcZTVUPBiBDxOeE
    31C6NXPUXSHQQwmM

    • Insérez l'outil d'ouverture iFixit dans la couture et soulevez doucement la plaque de recouvrement.

    • Retirez le couvercle une fois qu'il est desserré.

  4. EFHFICKyRjFdcTEs
    EFHFICKyRjFdcTEs
    leIIPDY1FOAyWeK1
    SwEMeikPShDDfwPY

    • Retirez les trois vis fixant la carte mère à l'aide du tournevis J00.

    • Retirez la carte mère.

  5. HfY4IoPBTOACxlBX
    HfY4IoPBTOACxlBX
    OswC5VrbgPl6kQAQ
    TUkKWZEfIDLk22G2

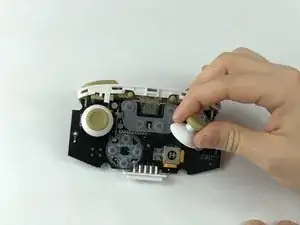

    • Tirez les bâtons L et R hors de la prise.

    I am having a hard time sourcing the parts for this repair. Any tips on where to order new L and R sticks, or analog thumbsticks, as I’m seeing them referred to? I ordered Nintendo Pro Controller analog thumbsticks online and could not complete the repair as the underside of the knobs were not the right shape/fit. I need PowerA Enhanced Wireless Controller parts. Help!

    Rebecca -

    I’m having the same issue. Regular replacement joystick won’t fit and I can’t seem to find joysticks for specifically power A wireless controllers. Have you had an luck since commenting this?

    Riley Ross -

    Anyone have any luck? Also looking for the correct thumbstick replacements...

    Aaron Wells -

    I can't find anywhere that sells the replacement thumb sticks to replace. My son's left thumbstick cracked and broke and the switch pro thumbsticks you can get from ebay etc don't fit.

    pete.aitken -

Conclusion

Pour remonter votre appareil, suivez ces instructions dans l'ordre inverse.

Auteur

Ayjah Montgomery

Membre depuis le 10/10/19

405 Réputation

20 commentaires

My controllers are drifting, What can i do after getting the joystick of to fix that.

MilesGDC -

i dont know i cleaned using plush sticks ( that usually go to ears that one ) i used that and isopropacol alcohoc 90%

it works for 2 weeks ( on me ) and now my Right analog stick is too Loose to wiggle there

BrunoS -

Where can I get replacement thumbsticks for this controller? Are they the same as the Switch Pro Controllers?

engelgott0972 -

i need replacement joy-sticks too

BrunoS -

I need a link for the thumbsticks too. Cant seem to find them anywhere and PowerA does no sell them nor is willing to help.

Brandon Kohl -

I have just found them (I think, fingers crossed) on Aliexpress

oclose -

I get drift and I need help fixing that can someone please help me get rid of the drift

FP SKETCH -

i dont know i cleaned using plush sticks ( that usually go to ears that one ) i used that and isopropacol alcohoc 90%

it works for 2 weeks ( on me ) and now my Right analog stick is too Loose to wiggle there and i cant use it anymore i need to play my Right anolog stick ( from my switch ) to hold it and use my controllers left analog stick to move

BrunoS -

My controller is drifting how can I fix that

Jesus Bandrras -

i dont know i cleaned using plush sticks ( that usually go to ears that one ) i used that and isopropacol alcohoc 90%

it works for 2 weeks ( on me ) and now my Right analog stick is too Loose to wiggle there and i cant use it

BrunoS -

if there are Analog stick replacement parts then Can i buy some?

BrunoS -

Hi, Where can I buy replacement sticks, mine are trashed?

James Bennett -

You can try looking up small hole controller thumbsticks on Aliexpress. Not the best but they’ll do. Might have to trim the edges a bit to fit through the front case.

james.li17071994 -

Any idea where to get joysticks for these? I ordered switch pro controller joysticks and the hole underneath is too big for the rod.

robert Fram -

I may have find what is the exact part that make up the joystick: https://www.sparkfun.com/products/16273 based on that, the replacement joystick should be this: https://www.sparkfun.com/products/17263

I will try to order some and post back if that works.

Steve Garon -

I ended up buying those but will only receive them in a month: https://www.aliexpress.com/item/10050031...

Steve Garon -

I received my replacement tumb stick from AliExpress and they 100% work! They are much cheaper feel than the original thumbstick but at least I have a working controller. You can get them here: https://www.aliexpress.com/item/10050031...

Steve Garon -

I ordered the same and I can confirm, they fit and work great!! They look better than on the photo of the store site.

I even put my thumbstick rubber on it and it fits perfectly as well.

Victor Ku -

So I have what should be a power a enhanced wireless pro controller, but the one I have doesn't use AA batteries, how do I remove the internal battery out of a model that doesn't use AA batteries

Thinkninjas -

Stick drift. Stiiiiick drift. This is not telling us how to fix that. What do we use to fix that?

IsaacLaughter -
