GeForce 9800GT Teardown

Publication : 15/01/24

Vue éclatée

Introduction

I'd reccomend repasting the gpu if you're going to be cleaning it

  1. HZVcJeBZNThJnAsP

    • To strip down the GPU you'll need a Phillips #1 screwdriver

    • Optionally if you want to replace the fan you'll also need a Phillips #000 screwdriver

  2. 3RrEYL3Y4r42X6RI

    • Remove 12 screws joining the heatsink to the GPU (Phillips #1)

    • It is reccomended to use a "star pattern" when unscrewing and tightening to evenly distribute pressure

  3. 6FGZG6o6CNoXnfVy
    6FGZG6o6CNoXnfVy
    PJdtIJAtWXTK2uRK

    • Carefully "unfold" the heatsink as to not rip the fan connector

    • Disconnect the fan

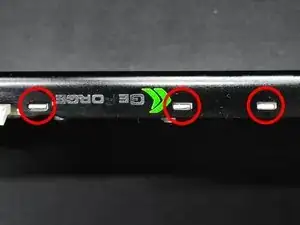

  4. 2NLIANUMR6Twik5w
    2NLIANUMR6Twik5w
    EUVYENPONWHB3NZu

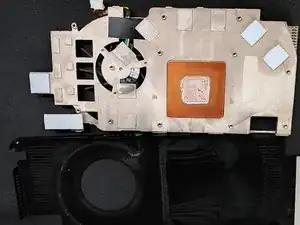

    PONNpHDeaiEfhRrL

    • Unclip the black cover from the heatsink by prying on it

  5. tS5DB3jr2sKS1In3
    tS5DB3jr2sKS1In3

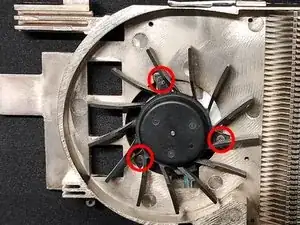

    AYFVPh5Emo6IAGap

    • Unscrew the 3 screws (Phillips #000)

  6. WsWVGh2iNEgCIqHZ
    WsWVGh2iNEgCIqHZ

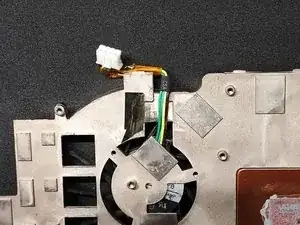

    RECHpYkBOSFQVnDY

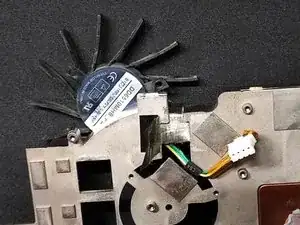

    hpKA1lcgIBqQewPx

    • Unpeel a piece of the tape that's holding down the cable

    • Fish the connector through the hole

  7. w1ISfDyZqvnABnYV

    • Do everything you just did just in reverse order

    • When reassembling and putting the fan cover back on don't forget to tuck the fan cable between the cover and the heatsink
